NEW! Interior & Dashboard lights Inspection

Detect damages on the cabin of the car, as well as dashboard warning lights

Inspection of a list of car cabin images

This endpoint allows you to submit an array of image URLs showing a part of a cabin of a vehicle. Alto AI will tell whether the part is damaged, dirty or undamaged.

Input

Output

"results": [
      {
        "result": {

          "dirty": 0,
          "undamaged": 0
        },

The results of the cabin inspection will be currently only returned over a webhook, and will soon be available for consultation on our Hub.

Detect Conditions of a Cabin From a List Images - Endpoint

POST https://alto.tchek.fr/apiV1/detect/damage-interior

Request Body

Name

Type

Description

urls

Array

List of file URLs. Ex: { "urls": [ "https://tchek-images.s3.eu-west-3.amazonaws.com/swagger/interiorDamage1.jpg", "https://tchek-images.s3.eu-west-3.amazonaws.com/swagger/interiorDamage2.jpg", "https://tchek-images.s3.eu-west-3.amazonaws.com/swagger/interiorDamage3.jpg" ] }

Sample images


Url

Image type

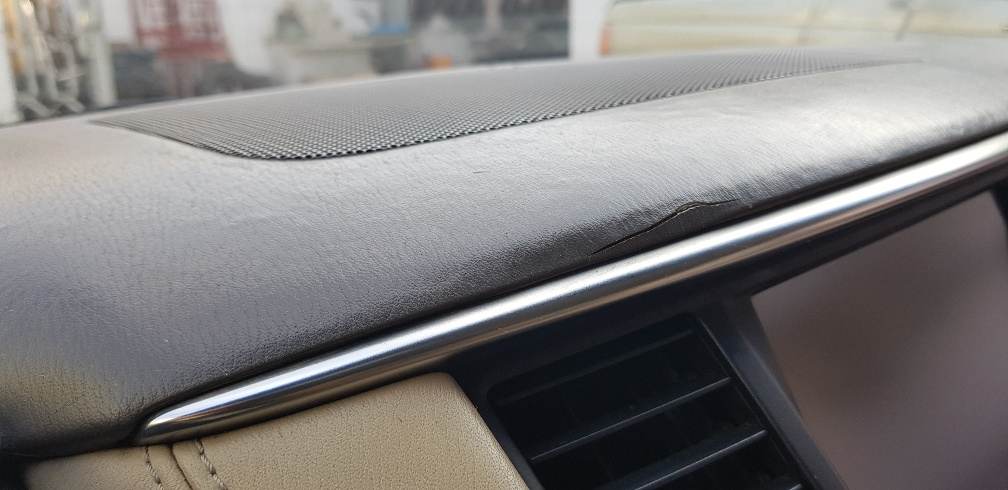

https://tchek-images.s3.eu-west-3.amazonaws.com/swagger/interiorDamage1.jpg

Cabin damage

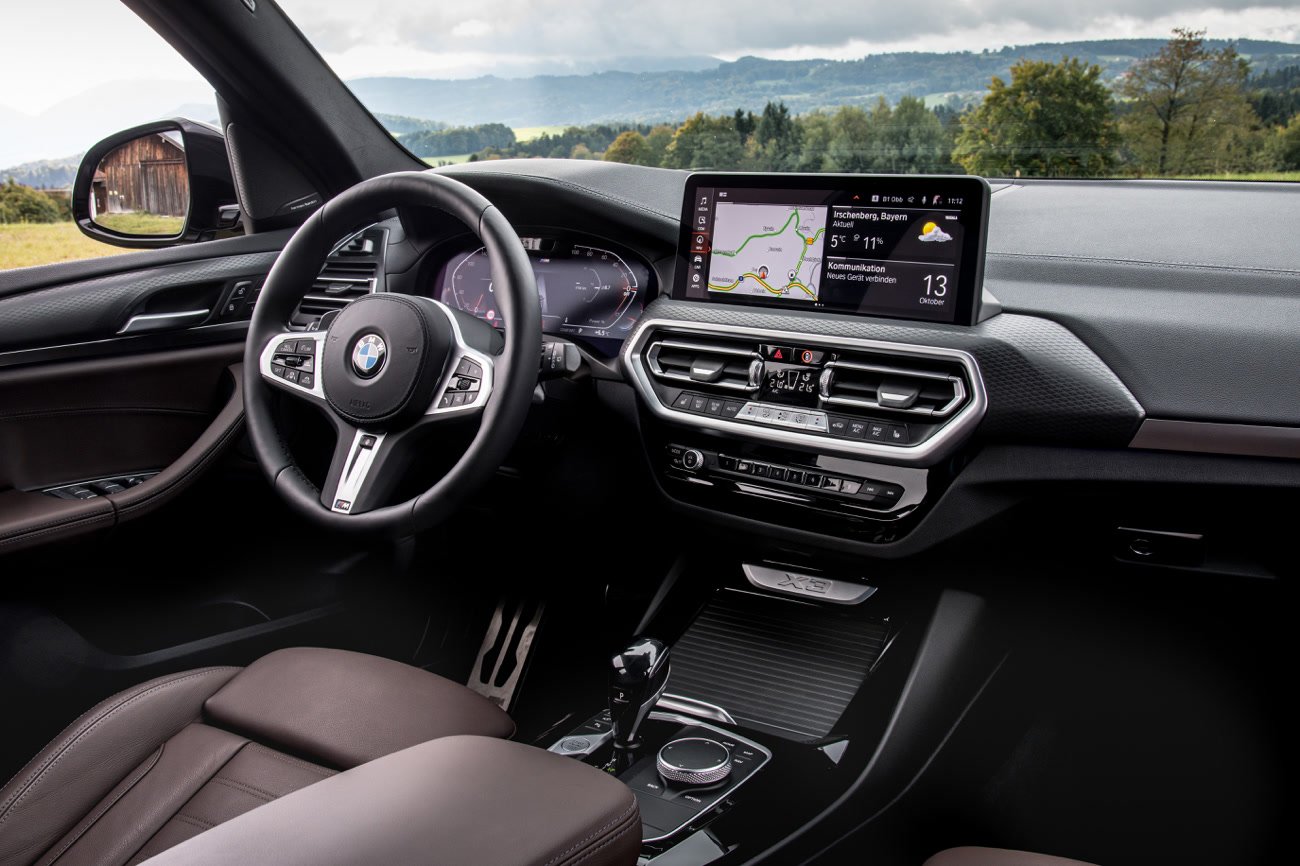

https://tchek-images.s3.eu-west-3.amazonaws.com/swagger/interiorDamage2.jpg

Cabin - undamaged

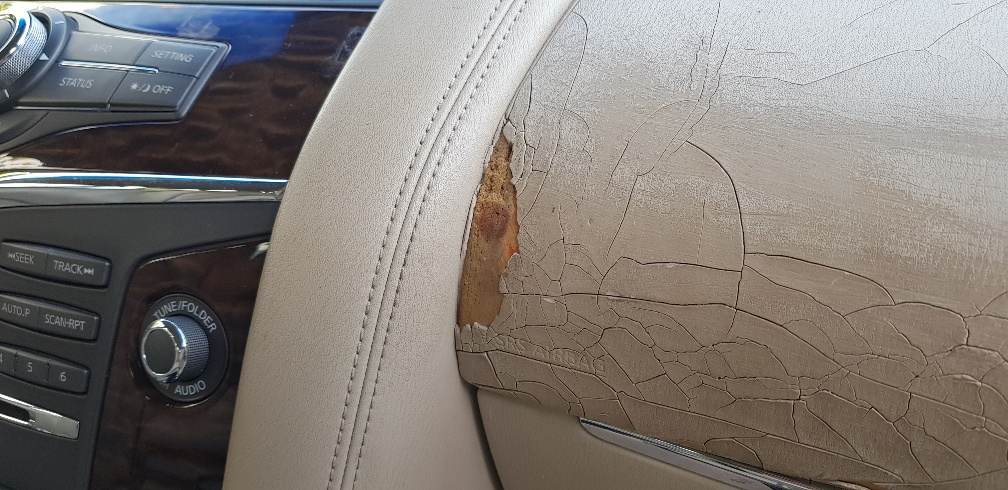

https://tchek-images.s3.eu-west-3.amazonaws.com/swagger/interiorDamage3.jpg

Cabin damage

Response

{
  "id": "76bccb0a3c9f762c",
  "status": 200,
  "data": {
    "results": [
      {
        "result": {
          "damaged": 1,
          "dirty": 0,
          "undamaged": 0
        },
        "url": "https://www.renovation-du-cuir.fr/forum/images/2635-1.jpg"
      }
    ],
    "requestId": "76bccb0a3c9f762c"
  }
}

{
  "error": "Invalid Token"
}

{
  "error": "You need a webhook to receive the results"
}

{
  "error": "Internal server error"
}

Key

Type

Description

String

The id of the request

status

Number

200 if success, 422 if error

url

String

The url of tje image analyzed

data.results.damages

Array

List of results, see below

requestId

String

The id of the request

Result

Key

Type

Description

damaged

Integer

1 if the part in the picture is damaged

dirty

Integer

1 if the part in the picture is dirty

undamaged

Integer

1 if the part in the picture is NOT damaged

Inspection of a list of dashboard images

This endpoint allows you to submit an array of image URLs showing the dashboard of a vehicle. Alto AI will tell whether one or more warning lights are detected, along with their coordinates in the image, their type, their color and their confidence score (0 to 1, where 1 is maximum confidence). The results of the dashboard lights inspection will be currently only returned over a webhook, and will soon be available for consultation on our Hub.

Input

Output

Detect Dashboard Warnings from a List of Dashboard Images - Endpoint

POST https://alto.tchek.fr/apiV1/detect/indicators

Request Body

Name

Type

Description

urls

Array

List of file URLs

Response

{
  "id": "806bbd383f89362d",
  "status": 200,
  "data": {
    "https://tchek-images.s3.eu-west-3.amazonaws.com/swagger/indicator1.webp": {
      "0": {
        "anomaly": "CHECK_ENGINE",
        "bbox": [
          0.19195402298850575,
          0.4236842105263158,
          0.22758620689655173,
          0.4868421052631579
        ],
        "score": 0.85,
        "status": "Yellow"
      },
      "1": {
        "anomaly": "BATTERY",
        "bbox": [
          0.15402298850574714,
          0.5684210526315789,
          0.1896551724137931,
          0.6289473684210526
        ],
        "score": 0.84,
        "status": "Red"
      },
      "2": {
        "anomaly": "ENGINE_OIL",
        "bbox": [
          0.1839080459770115,
          0.7052631578947368,
          0.22758620689655173,
          0.7657894736842106
        ],
        "score": 0.83,
        "status": "Red"
      },
      "3": {
        "anomaly": "FUEL_LEVEL",
        "bbox": [
          0.2896551724137931,
          0.4789473684210526,
          0.3264367816091954,
          0.5552631578947368
        ],
        "score": 0.83,
        "status": "Yellow"
      },
      "4": {
        "anomaly": "BRAKE",
        "bbox": [
          0.7390804597701149,
          0.49473684210526314,
          0.771264367816092,
          0.5526315789473685
        ],
        "score": 0.82,
        "status": "Red"
      }
    }
  }
}

{
  "error": "Invalid Token"
}

{
  "error": "You need a webhook to receive the results"
}

{
  "error": "Internal server error"
}

Key

Type

Description

String

The id of the request

status

Number

200 if success, 422 if error

data.results.damages

Array

List of results, see below

requestId

String

The id of the request

Data Array

Key

Type

Description

url

String

The url of the image analyzed

Integer

The id of each identified dashboard light

Data

Key

Type

Description

anomaly

String

The identifier of the warning light. List below: List of warning lights

Integer

the id of each identified dashboard light

bbox

Array

xyxy format of the bounding box coordinates. First xy couple: upper-left corner of the bounding box. Second xy couple: bottom-right corner of the bounding box

score

Number

Confidence score, from 0 to 1. 1= full confidence

status

String

The color of the warning light in the picture.
